Truck Scales for Over-the-Road Trucks

Weighbridges for Road Transportation



Lifecycle Testing

Every new weighbridge design undergoes rigorous lifecycle testing. Over a couple of months, each weighbridge design is tested to a minimum of one million cycles - or 20 years of heavy use. This testing helps guarantee the best quality and longest scale life.

Proven Weighbridge Design





Proven Weighbridge Design

Both steel- and concrete-deck METTLER TOLEDO truck scales use the proven design of orthotropic ribs. This unique design helps direct the pressure of a heavy load away from areas that would be fatigued by stress. Continuous welds along the seam of each rib to the deck ensure lasting strength.



Now Available for Your Weighbridge - 10 Year Load Cell Warranty

METTLER TOLEDO is now backing our premium POWERCELL® PDX® load cells, with an unprecedented 10 Year Warranty. Delivering exceptional accuracy and reliability, a low total cost of ownership, and now a Comprehensive 10 Year Warranty to back it up. If you are shopping for a new truck scale, or simply wish to upgrade your weighbridge - look no further than POWERCELL® PDX®.

7563 Truck Scales

Orthotropic Steel-Deck Scales
Model 7563 is a steel deck scale for weighing over-the-road legal trucks and certain off-road vehicles. The design is flexible and can be tailored to match your specific application requirements. The orthotropic design provides reliable weighing over a long service life, while POWERCELL® load cells transmit an extremely powerful signal for accurate, dependable weighing. In addition, the steel deck design is ideal for operations that need their scale up and running quickly.
Specifications – 7563 Truck Scales
DescriptionA steel deck truck scale with robust closed orthotropic ribs for heavy traffic and harsh environments.
Deck ConstructionSteel
Width9 ft 9 in, 9 ft 11 in, 10 ft, 11 ft, 11 ft 10 in, 14 ft, 16 ft (2.79, 3, 3.04, 3.3, 3.6, 4.2, 4.8 m)
Length15 to 140 ft (4.6 to 42.7 m)
Height17 in (432 mm)
ApplicationsMining; Forest Products; Solid Waste; Aggregates; Bulk Foods; Scrap Metals; Steel Mills; Utilities; Chemicals
ApprovalNTEP Certificate: 96-092A5
CapacitySingle Width: 120,000 lb (scale lengths or = to 20 ft) Side-by-Side: 240,000 lb (scale lengths or = to 20 ft)
Trade NamePOWERCELL

POWERCELL® PDX® load cells deliver the ultimate in vehicle weighing with unequaled accuracy and reliability. They eliminate junction boxes and are hermetically sealed for use in the toughest environments. The predictive diagnostics system monitors performance and reports on network health.




Orthotropic Design

Model 7563 easily handles the forces generated by normal truck traffic, distributing concentrated loads more effectively than standard I-beam deck structures. The robust orthotropic design is similar to the one used on the Golden Gate Bridge and many other highway bridges around the world.





Lightning Protection

The specially designed StrikeShield™ lightning protection system helps prevent costly downtime by using multiple levels of protection to safeguard your entire scale system: load cells, cables, and terminal. It is the only system that has been tested by third-party laboratories and withstood multiple lightning strikes without failure.





Options and Accessories
Choose from a large selection of options and accessories that let you tailor a truck scale to fit your application. Whether you are adding a manhole, side rails, wireless remote display, unattended terminal, or other options, upgrading your scale is simple.






Truck Scale VTS231 Standard

Proven Truck Scale Performance.
  • POWERCELL PDX – the ultimate protection

Outstanding accuracy, reliability, and predictive diagnostics – POWERCELL PDX protects your system without high maintenance junction boxes.

  • Superior Lightning and IP68 Protection

Proven to withstand lightning strikes, the StrikeShield™ system helps prevent downtime by safeguarding your system from lightning and water damage.

  • Designed, Tested, and Proven to last

With a robust and reliable orthotropic design, the VTS231 truck scale has been tested and proven to deliver a lower total cost of ownership.

Specifications – Truck Scale VTS231 Standard
Vehicle Scale Dimensions (LxW)70 ft x 11 ft
CLC100,000 lb
Gross Capacity200,000 lb
Load Cell50t SS POWERCELL PDX
Deck MaterialSteel
OptionsGrain Dump Through; Side Rails; 9’-10” or 11’-10” width deck; Manholes; Multi-Axle Scale Configurations; Riser Base Plates; Side rail mounting brackets; Temporary Frame
Material Number(s)30088393

Truck Scale VTS202 Analog

VTS202 Analog Truck Scale.
  • Proven Truck Scale Performance with Stainless Steel Analog Load Cells

The rocker-column design automatically aligns load forces for accurate weighing and is hermetically sealed and IP68 rated for use in all environments.

  • Orthotropic Design

Easily handles normal truck traffic and the robust design is similar to the Golden Gate Bridge and many other heavily travelled highway bridges.

  • Designed, Tested, and Proven to last

A robust and reliable orthotropic design, the VTS202 steel deck truck scale has been tested and proven to deliver the industry’s lowest Total Cost of Ownership.

Specifications – Truck Scale VTS202 Analog
Vehicle Scale Dimensions3.4 m
CLC28,000 kg
Load Cell0782/GD
Deck MaterialSteel
Cable WiringStandard
Material Number(s)72248774

Truck Scale VTC205 POWERCELL PDX

VTS205 Analog Truck Scale.
  • POWERCELL PDX – the ultimate protection

Outstanding accuracy, reliability, and predictive diagnostics – POWERCELL PDX protects your system without high maintenance junction boxes.

  • Superior Lightning and IP68 Protection

Proven to withstand lightning strikes, the StrikeShield™ system helps prevent downtime by safeguarding your system from lightning and water damage.

  • Designed, Tested, and Proven to last

With a robust and reliable orthotropic design, the VTS231 truck scale has been tested and proven to deliver a lower total cost of ownership.

Specifications – Truck Scale VTC205 POWERCELL PDX
Vehicle Scale Dimensions3.4 m
CLC28,000 kg
Load CellPowerCell PDX
Deck MaterialConcrete
Protection RatingIP68
Cable WiringStandard
OptionsSide Rails
Material Number(s)72248779

Truck Scale VTS200 POWERCELL PDX

VTS202 Analog Truck Scale.
  • POWERCELL PDX – the ultimate protection

Outstanding accuracy, reliability, and predictive diagnostics – POWERCELL PDX protects your system without high maintenance junction boxes.

  • Superior Lightning and IP68 Protection

Proven to withstand lightning strikes, the StrikeShield™ system helps prevent downtime by safeguarding your system from lightning and water damage.

  • Designed, Tested, and Proven to last

With a robust and reliable orthotropic design, the VTS231 truck scale has been tested and proven to deliver a lower total cost of ownership.

Specifications – Truck Scale VTS200 POWERCELL PDX
Vehicle Scale Dimensions3.4 m
CLC28,000 kg
Load CellPowerCell PDX
Deck MaterialSteel
Cable WiringStandard
Material Number(s)72248778

Truck Scale VTS101 Standard

Proven Truck Scale Performance.
  • POWERCELL PDX – the ultimate protection

Outstanding accuracy, reliability, and predictive diagnostics – POWERCELL PDX protects your system without high maintenance junction boxes.

  • Superior Lightning and IP68 Protection

Proven to withstand lightning strikes, the StrikeShield™ system helps prevent downtime by safeguarding your system from lightning and water damage.

  • Designed, Tested, and Proven to last

With a robust and reliable orthotropic design, the VTS231 truck scale has been tested and proven to deliver a lower total cost of ownership.

Specifications – Truck Scale VTS101 Standard
Vehicle Scale Dimensions (LxW)70 ft x 11 ft
CLC80,000 lb
Gross Capacity200,000 lb
Load Cell50t SS POWERCELL PDX
Deck MaterialSteel
OptionsNone
Material Number(s)30094492

Truck Scale VTS100 Standard

Proven Truck Scale Performance.
  • POWERCELL GDD Load Cells

POWERCELL GDD load cells use digital signal processing to provide highly accurate vehicle weighing. Each load cell is equipped with a digital-compensation system that maintains accuracy despite changing environmental conditions.

  • Orthotropic Design

Easily handles normal truck traffic. The robust design is similar to the Golden Gate Bridge and many other highway bridges that experience heavy usage.

  • Designed, Tested and Proven to Last

With a robust and reliable orthotropic design, the VTS231 truck scale has been tested and proven to deliver a lower total cost of ownership.

Specifications – Truck Scale VTS100 Standard
Vehicle Scale Dimensions (LxW)70 ft x 11 ft
CLC80,000 lb
Gross Capacity200,000 lb
Load CellPOWERCELL GDD
Deck MaterialSteel
OptionsNone
Material Number(s)30092658

7541 Truck Scales

Concrete-Deck Scales for Pit Installation
Model 7541 is a concrete-deck scale (commercial duty) for weighing highway vehicles. It is designed for installation in a pit. Reinforced concrete deck is framed by steel channel that is welded to steel support modules. POWERCELL load cells transmit a powerful signal for accurate, reliable weighing.
Specifications – 7541 Truck Scales
Maximum Capacity100000 kg
Maximum Capacity200000.0 lb
Readability10 kg
Readability20 lb
Length10´ to 120´ (20´ and 25´ modules)
Width10´
ConfigurationMounted in a pit
Deck ConstructionConcrete and steel, I-Beam
Hazardous area approvalFactory Mutual, Ex
Suitable indicatorsIND246, IND570, IND780
Trade Nametruck scales

Features and Benefits

  • Continuous 6-inch deck
  • 45,000-lb dual tandem axle rating
  • Manhole provides access to pit
  • Custom grain-dump option
  • Steel blasted to SSPC-SP6
  • POWERCELL load cells with self-diagnostic capabilities
  • NEMA 4X stainless steel junction boxes
  • 5-year guarantee / StrikeShield lightning protection
  • Epoxy-painted steel resists corrosion


7531 Truck Scales

Concrete-Deck Scales for Above-Ground Installation

Model 7531 is a concrete-deck scale (commercial duty) for weighing highway vehicles. It is designed for above-ground installation. Driving surface is reinforced concrete (8 inches thick) with a modular steel framework. Steel I-beam framework is assembled on site and provides a built-in side rail for safety. POWERCELL load cells transmit a powerful signal for accurate, reliable weighing.

Specifications – 7531 Truck Scales
Maximum Capacity100000.0 kg
Maximum Capacity200000.0 lb
Readability10 kg
Readability20 lb
Length12´ to 120´ (20´ and 25´ modules)
Width10´ and 11´
ConfigurationMounted above ground
Deck ConstructionConcrete and steel, I-Beam
Hazardous area approvalFactory Mutual, Ex
Suitable indicatorsIND246, IND570, IND780
Trade Nametruck scales

Features and Benefits

  • Profile: 19.5 inches
  • 45,000-lb dual tandem axle rating
  • Easily assembled bolt-together design lowers shipping costs
  • No crane required to set modules
  • Heaviest component weighs 1,500 lb
  • Steel blasted to SSPC-SP6
  • POWERCELL load cells with self-diagnostic capabilities
  • NEMA 4X stainless steel junction boxes
  • Cables with stainless steel sheath
  • 5-year guarantee / StrikeShield lightning protection
  • Epoxy-painted steel resists corrosion


Transportable Vehicle Scale

Easy-to-move and Easy-to-install

The unique design of METTLER TOLEDO‘s new Transportable Weighbridge enables easy and fast installation without compromising accuracy or reliability. The revolutionary weighbridge structure can be easily dismantled, transported and assembled from one location to another without requiring expensive concrete foundations. The Transportable Weighbridge is the first of its kind in Australia, and like all METTLER TOLEDO products, it has been designed and manufactured 100% by an expert team of engineers. The weighbridge comes with POWERCELL® PDX® load cells for exceptional reliability.



Orthotropic Steel Deck

The transportable weighbridge easily handles the forces generated by normal truck traffic, distributing concentrated loads more effectively than standard I-beam deck structures. Guaranteed for long life, the orthotropic deck has been designed using the same construction methods employed on famous bridges such as the Golden Gate (USA), the Akashi-Kaikyo (Japan), the Humber (UK) and many other heavily traveled highway bridges around the world.

Ease of Installation

The Transportable Weighbridge can be installed in a variety of environments and on a variety of surfaces, eliminating the need for a concrete foundation which is often the greatest cost incurred with a weighbridge installation. METTLER TOLEDO factory trained technicians can install the system efficiently so that you can quickly make use of your investment.

Axle Scale and Weighing Solutions

For Chain of Responsibility Compliance

METTLER TOLEDO’s range of axle weighing solutions are engineered to suit a variety of vehicle weighing requirements, from single axle weighing through to dual, tri or even quad axles. Each solution has been designed to capture and accumulate data accurately and efficiently to assist with Chain of Responsibility compliance.



  • Multi-Deck Axle Weighbridge

METTLER TOLEDO’s multi-deck axle weighbridge uses multiple independent weighing modules to simultaneously calculate a vehicle’s total gross weight, providing accurate data fast without repositioning the vehicle. By calculating the weight of each axle group, the weighbridge can assist your company with Chain of Responsibility compliance.

The multi-deck weighbridge comes with either a steel or concrete deck and features orthropic ribs and POWERCELL PDX load cells to provide many years of accurate and reliable weighing.

Axle Scale and Axle Weighing Solutions

FeatureSpecification
Deck constructionReinforced concrete or steel construction
Weighbridge width (standard)3 m, 3.4 m
Weighbridge length4 m to 50 m +
Lightning protection (tested)Lightning Technologies tested – 100 000v,
   80 000 A (POWERCELL PDX)
Weighing componentsStainless Steel
Load cellsHi-performance POWERCELL PDX
Load cell protection classIP68, IP69k; NEMA 6p
Capacity30/50/60/80/100 t
Maximum rated axle load23.5 t tri axle over 1.2 m axle spacing
Operating temperature-60° c to + 50° c (-76° F to 122° F)
Temperature EC/94/EEC-10° c to + 40° c (4° F to 104° F)
Side railsAbove ground solutions only
Easy access to load cellsYes
Unmanned operationDriver Control Station (DCS)



  • Slow Speed Weigh-in-Motion Axle Weighbridge

The unique design of METTLER TOLEDO’s weigh-in-motion axle weighing solution can be installed without expensive concrete foundations, considerably reducing your construction costs. The in-ground design makes it easy for vehicles to enter and exit the axle weighbridge without stopping, traveling at a constant speed of less than ten kilometres per hour.

Axle Scale

FeatureSpecification
Deck constructionSteel construction
Weighbridge width (standard)3.2 m
Weighbridge length0.8 m
Weighing componentsStainless Steel
Load cell protection classIP68, IP69k; NEMA 6p
Capacity30/50/60/80/100 t
Maximum rated axle load23.5 t tri axle over 1.2 m axle spacing
Operating temperature-60° c to + 50° c (-76° F to 122° F)
Temperature EC/94/EEC-10° c to + 40° c (4° F to 104° F)
Side railsAbove ground solutions only
Easy access to load cellsYes
Unmanned operationDriver Control Station (DCS)



Axle Scale

  • In-Ground Axle Weighbridge

The in-ground axle weighing solution from METTLER TOLEDO enables bi-directional entry for easy and efficient vehicle weighing. The structure includes the unequalled reliability of POWERCELL PDX load cells. With their robust, stainless steel construction, POWERCELL PDX load cells provide 100% protection against the forces that can eat into your profits, including extreme temperatures, lightening strikes, water and floods, rodents, and rust and corrosion.

FeatureSpecification
Deck constructionReinforced concrete or steel construction
Weighbridge width (standard)3 m, 3.4 m
Weighbridge length4.8 m to 50 m +
Lightning protection (tested)Lightning Technologies tested – 100 000v,
   80 000 A (POWERCELL PDX)
Weighing componentsStainless Steel
Load cellsHi-performance POWERCELL® PDX®
Load cell protection classIP68, IP69k; NEMA 6p
Capacity30/50/60/80/100 t
Maximum rated axle load23.5 t tri axle over 1.2 m axle spacing
Operating temperature-60° c to + 50° c (-76° F to 122° F)
Temperature EC/94/EEC-10° c to + 40° c (4° F to 104° F)
Easy access to load cellsYes
Unmanned operationDriver Control Station (DCS)


7560 Concrete Deck Truck Scales

Durable Concrete Deck Scales

Model 7560 is a concrete deck scale for weighing over-the-road legal vehicles. It is a composite design that uses an 8-inch-thick concrete deck with a modular steel framework. The concrete pans come from the factory ready to receive concrete without any field welding or rebar placement required. This simplifies installation and ensures the overall quality of the deck.

Specifications – 7560 Concrete Deck Truck Scales
Trade NamePOWERCELL

POWERCELL Load Cells7560 Concrete Deck Truck Scales

POWERCELL® MTX® load cells are proven to perform with a successful history of nearly one million cells in service worldwide. POWERCELL MTX high-speed weighing technology includes an on-board microprocessor that continually adapts to changing external influences to provide you with the most accurate scale possible.





Composite Structure7560 Concrete Deck Truck Scales
This design combines the superior compressive strength of concrete with the high tensile strength of steel to provide an exceptionally durable weighbridge that will deliver years of reliable service.









Lightning Protection7560 Concrete Deck Truck Scales
The specially designed StrikeShield™ lightning protection system helps prevent costly downtime by using multiple levels of protection to safeguard your entire scale system: load cells, cables, and terminal. It is the only system that has been tested by third-party laboratories and withstood multiple lightning strikes without failure.





Proven Performance7560 Concrete Deck Truck Scales
Using the “Module Masher” accelerated-life-cycle test stand, we have tested actual scale modules for 2 million cycles with a minimum live load of 60,000 pounds (equal to 20 years of truck traffic). This is one of the ways that METTLER TOLEDO goes beyond the competition to provide the most reliable scales in the industry.







VTC191 Truck Scales

Containerized Concrete Deck Truck Scale

The VTC191 containerized truck scale ships as disassembled modules for assembly in the field. A small install team bolts components of each module together, no crane is required. Next pre-cut rebar is laid and finally cement is poured. The install process can be completed within a few hours and with minimal tools or hassle. The fully galvanized body and lifecycle testing ensure this scale can stand up to harsh environments and the test of time. With the ability to fit 18 individual modules in one standard size shipping container or ship as LTL, this scale is revolutionizing the cost of freight for long distance installations. Paired with POWERCELL® PDX® load cells, this scale provides world renowned METTLER TOLEDO accuracy and reliability. Across the country or across the world, the VTC191 can go the distance.

POWERFUL WARRANTY

VTC100 Truck Scale Backed by the industry’s finest service network and most powerful 5 year warranty:

  • 100% Parts
  • 100% Labor
  • 100% Travel
  • 100% Mileage
  • Full lightning protection

POWERCELL® Load Cells

POWERCELL® PDX® load cells deliver the ultimate in vehicle weighing with unequaled accuracy and reliability. They eliminate junction boxes and are hermetically sealed for use in the toughest environments. The predictive diagnostics system monitors performance and reports on network health.

VTC191 is also available with POWERCELL® GDD™ load cells (warranty changes apply).





Unique Design

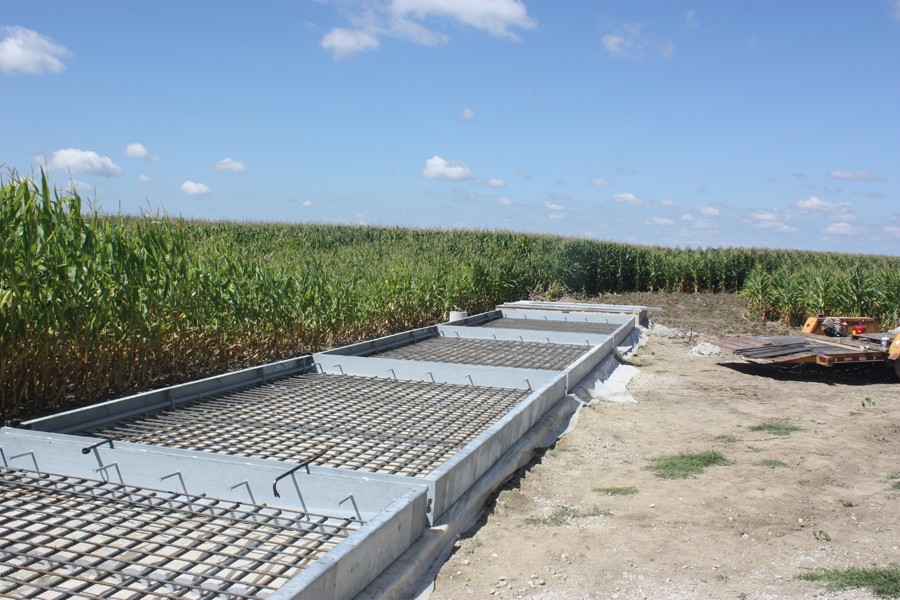

The VTC191 fully galvanized scale is designed to ship as disassembled kits for assembly in the field. Freight costs are reduced as the modules can be shipped as LTL or up to 18 per standard shipping container. Costs are also curbed by avoiding crane rental, instead a forklift is used to maneuver the modules.



Proven Performance

Using the “Module Masher” accelerated-life-cycle test stand, we have tested actual scale modules for 1 million cycles with a minimum 60,000 lb dual-tandem-axle load tire pattern. This is one of the ways that METTLER TOLEDO goes beyond the competition to provide the most reliable scales in the industry.





Lightning Protection

The specially designed StrikeShield™ lightning protection system helps prevent costly downtime by using multiple levels of protection to safeguard your entire scale system: load cells, cables, and terminal. It is the only system that has been tested by third-party laboratories and withstood multiple lightning strikes without failure.

Weighbridge for Over-the-Road Trucks

Accurate Weighing for Industrial Transportation
  • Long-Lasting Durable Weighbridge

Weighbridges in this category are designed for trucks that are used in normal highway transportation. The modular design of these products allow for customization to suit your exact needs. Choose from a wide range of steel and concrete deck weighbridge designs that use our analog or POWERCELL(R) load-cell technology to provide proven performance and exceptional durability.

  • Lifecycle Testing

Every new weighbridge design undergoes rigorous lifecycle testing. Over a couple of months, each weighbridge design is tested to a minimum of one million cycles – or 20 years of heavy use. This testing helps guarantee the best quality and longer life.

  • Proven Weighbridge Design

Both steel- and concrete-deck METTLER TOLEDO weighbridges use a highly tested, proven design. This unique design helps direct the pressure of a heavy load away from areas that would be fatigued by stress. Continuous welds along the longitudinal beams of deck ensure lasting strength.

  • Reliability for Better Accuracy

Our analog and POWERCELL load cells offer high reliability and repeatability for a high level of accuracy.

7560 Steel Deck Truck Scales

Durable Steel Deck Scales

Model 7560 is a steel deck scale for weighing over-the-road legal vehicles. The steel deck is reinforced by orthotropic ribs. The ribs are shaped to distribute concentrated loads better than I-beam designs, leading to a longer life for your scale. By combining the strength of an orthotropic weighbridge with the reliability of POWERCELL® PDX® load cells, this truck scale ensures that you will get years of trouble-free weighing even in the harshest environments and toughest applications.

Specifications – 7560 Steel Deck Truck Scales
Trade NamePOWERCELL


POWERCELL Load Cells7560 Steel Deck Truck Scales
POWERCELL® MTX® load cells are proven to perform with a successful history of nearly one million cells in service worldwide. POWERCELL MTX high-speed weighing technology includes an on-board microprocessor that continually adapts to changing external influences to provide you with the most accurate scale possible.





Composite Structure7560 Steel Deck Truck Scales
This modular truck scale has a steel deck that is reinforced by orthotropic ribs. This design provides a durable weighbridge that will deliver years of reliable service.









Lightning Protection7560 Steel Deck Truck Scales
The specially designed StrikeShield™ lightning protection system helps prevent costly downtime by using multiple levels of protection to safeguard your entire scale system: load cells, cables, and terminal. It is the only system that has been tested by third-party laboratories and withstood multiple lightning strikes without failure.





Proven Performance7560 Steel Deck Truck Scales
Using the “Module Masher” accelerated-life-cycle test stand, we have tested actual scale modules for 2 million cycles with a minimum live load of 60,000 pounds (equal to 20 years of truck traffic). This is one of the ways that METTLER TOLEDO goes beyond the competition to provide the most reliable scales in the industry.





37604494 / 33389620

info@el-batawi.com

6 El Sad El Aly Street – Dokki

©El-Batawi co. All Rights Reserved
