IND780 Advanced Weighing Terminal

Power and performance for advanced weighing applications

Powerful Weighing Software

The ability to monitor and control up to 4 scales with independent scale settings, an advanced database for managing store tare & target values, plus thousands of weighing records which can then be exported into higher level applications is the core of an advanced terminal that has the flexibility needed to integrate into a broad variety of weighing applications.

Effective User Interface

The QVGA color display with easily configurable soft-keys, as well as standard interface to both external data entry devices and bar code readers provides a high productivity method for users to interact with the weighing system.

Flexible Configuration and Custom Programmability

A broad variety of interface including fieldbus, Ethernet TCP/IP, serial, USB, and up to 40 inputs and 56 outputs using both internal and external I/O is possible. A pulse counter input provides further sensor integration possibility and the ability to run custom software on this terminal provide a powerful ability to create a weighing solution that tightly fits with production processes.

Flexible Control Options

The ability to connect to a broad variety of fieldbus networks, and the internal discrete I/O provide a solution for gain-in-weight (filling), loss-in-weight (dosing) and level indication applications. These terminals are suitable for flexible integration into a variety of industrial applications.

Multi-Scale Flexibility in Harsh Environments

The IND780 is the go to terminal for connecting multiple scales in a Hazardous Area classified as Zone 2/22 or Division 2. A maximum of four scales can be connected. Supporting connection of analog and precision scale types provides flexibility in managing weighing processes in tough environments. Due to its non-incendive approval the IND780 is capable of connecting directly to power, PC, ERP, PLC and printers in the Non-hazardous Area without the need for barriers by using wiring methods allowed for Zone 2/22 or Division 2.

Weighing Terminal IND780

High Performance Weighing.

SmartTrac Shows It All

Enhanced graphical display providing improved process visualization for material transfer or over/under weighing to increase productivity and quality.

Multi-channel Concurrent Weighing

Concurrent measurement channels in one terminal and fast A/D performance at 366 Hz promote hardware cost savings at increased throughput and accuracy.

Embedded Maintenance Technician

Embedded diagnostic tools help avoid costly unscheduled breakdowns and quality defects by predicting failures and maintaining calibration compliance.

Specifications

Specifications – Weighing Terminal IND780

Scale	Analog; IDNet; Powercell; POWERCELL PDX; X-Base
Communication	RS232; Ethernet TCP/IP; USB
Application Software	Batching; QI; Remote
Communication (Optional)	Allen-Bradley RIO; PROFIBUS DP; Discrete I/O; ControlNet; PROFINET; EtherNet/IP; DeviceNet
Mounting Flexibility	Column; Desk; Panel; Wall
Voltage	AC Version
Display	Active VFD dot matrix
Dimensions (LxWxH)	11.8 in x 7.9 in x 5.6 in (299 mm x 200 mm x 141 mm)
Display Mounting Flexibility	Unit integrated
Key Pad	alpha-numeric keypad
CalFREE Calibration	Yes
Housing	Stainless Steel
Interfaces	4I/4O/4-20 mA Analog Output/Allen-Bradley RIO/ControlNet/RS232/422/485/Flux/PROFIBUS DP/DeviceNet/EtherNet/IP
Protection Rating	IP69k
Hazardous Approval	No
Custom programmable	Yes
Hygenic Design	Yes
Material Number(s)	64087983

WIM (Weigh In Motion) Systems

Proven Reliability and Ease of Use for Vehicle Weight Enforcement Applications

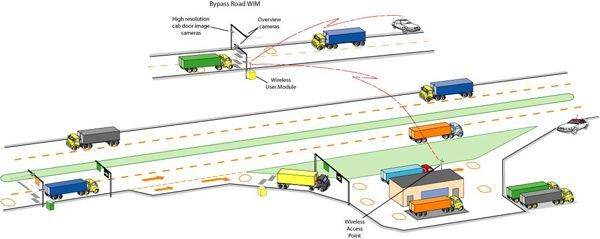

METTLER TOLEDO WIM systems provide accurate, robust solutions for high-volume, in-motion vehicle weighing. Whether in a fixed weighing facility, in a stand-alone virtual weigh station, or in a data collection installation, these systems provide a more efficient and cost-effective alternative to static axle or full-platform scales.

Specifications

The core elements of the METTLER TOLEDO WIM System are the dual staggered weighing sensors in the roadway. As a vehicle crosses these sensors, at speeds of up to 80 mph, the vehicle’s speed, axle configuration and individual wheel, axle and gross weights, are measured. This WIM data can then be provided to a local PC or remote system for reporting, further data analysis, or integration with information from other peripheral devices.
Depending on the application, multiple weighing sensor technologies can be used, including low-maintenance scale platforms with stainless steel load cells, or the Kistler Lineas^® Quartz sensor, for fast and minimally invasive installation.

Specifications – WIM (Weigh In Motion) Systems

Applications	Weigh In Motion (WIM)
Suitable indicators	IND560, IND560 PDX, IND780

Features and Benefits

Choice of powerful, flexible scale terminals — IND560, IND560 PDX and IND780
Staggered WIM sensor configuration eliminates the need for costly, maintenance-intensive axle sensors.
METTLER TOLEDO exclusive Auto-Calibration of the WIM sensors via a static scale interface eliminates costly regular calibration.
Full system integration provides maximum flexibility in real-world applications, from communication with state-wide data networks to combining weighing operations with other vehicle safety and compliance-checking technologies.
Range of peripheral devices includes:
Over-height and off-scale detection
Variable Messaging Signs to sort vehicles and control traffic flow
In-motion vehicle dimensioning
Image capturing with LPR (License Plate Reader) and OCR (Optical Character Recognition) technology
Designed to comply with ASTM 1318-02 requirements.
