IND131/IND331 Weighing Terminals



Flexible Control Options

The ability to connect to a broad variety of fieldbus networks, and the internal discrete I/O provide a solution for gain-in-weight (filling), loss-in-weight (dosing) and level indication applications.  These terminals are suitable for use with either AC or 24VDC input power, providing for flexible integration into a variety of industrial applications.

The IND131/IND331 terminals offer flexibility in integration with process equipment at multiple levels by allowing you to:

    • Match the enclosure to the application with a choice of four enclosure types:
      • DIN rail mount
      • Junction box
      • Panel mount
      • Harsh/desk/wall mount
    • Choose from universal AC-powered or DC operating unit
    • Have a variety of controller interfaces:
      • Serial communication (RS-232 and RS232/485, with support for Modbus RTU protocol)
      • Discrete I/O — Relay or Open-collector type
      • PLC fieldbus interfaces, including
        • Analog output
        • Allen-Bradley RIO
        • EtherNet/IP™
        • Modbus TCP
        • DeviceNet™
        • PROFIBUS®
        • CC-Link
          •
  • Add-On Instructions and Add-On Profile are available
  • Take maximum advantage of a hybrid automated control system for process applications with the built-in latched target with two-speed material transfer control, comparators and DIO capabilities of the IND131/IND331.
  • They enhance performance for process applications using TraxDSP™ digital filtering, ultra-fast analog to digital weight conversions, rapid target comparison and PLC update rates, to ensure that your weight data will be available when you need it.
  • For use in hazardous environment applications, the panel mount analog load cell version of the PT terminal is FM approved for use in USA Division 2 and Zone 2 classified areas. This version is also marked as a Category 3 G/D device for use in European Zone 2 or Zone 22 areas



Variety of Housing Styles

Versions are offered for wall/column mounting, DIN rail mounting, panel mounting or as an IP69k junction box for placement near a tank or floor scale.  The rugged stainless steel housing, shallow profile panel mount display, and easy front access DIN rail version for cabling result in an efficient and flexible solution that fits perfectly into most production environments.



Advanced Calibration and Noise Filtering

For tank applications step-calibration and CalFREE provide the ability to easily calibrate large vessels with minimal or no test weights.  TraxDSP advanced filtering technology help assure a stable weight signal even in applications where severe vibration may be present.



Global Approvals

With weights & measures, and safety certifications for all major Global markets, the ability to ship equipment using IND131/331 to customers in a variety of locations is provided.  For hazardous area applications Zone 2/22 and Div 2 approvals, including IECEx approval is offered on some models.

IND131 DIN-mount terminal

Space-saving terminal in a standard mounting format
The IND131 compact scale terminal is DIN rail mounted to ensure convenient mounting and location. Wiring connections and the operator interface are readily accessible on the front panel.
Specifications – IND131 DIN-mount terminal
LevelBasic
DisplayOLED, 4 mm high
InterfacesAnalog output, Allen-Bradley RIO, CC-Link, DeviceNet™, EtherNet/IP™, Modbus TCP, PROFIBUS® DP / ControlNet™
Degree of protectionIP20, Type 1
HousingsDIN rail-mount plastic
ApplicationsProcess weighing
A/D rate (int./ext)Internal: 366 Hz. Target comparison: 50 Hz. PLC interface 20 Hz
Dimensions68 x 138 x 11 mm (2.7 x 5.4 x 4.4 inches)
KeyboardZero, Tare, Clear, Print
Signal processingTraxDSP™ digital filtering
Resolution100,000 divisions
Suitable platforms / weigh modulesAnalog load cells
Number of attachable platforms1
Digital Input/OutputOptional, relay or solid state, 2 inputs, 4 outputs
Mounting optionsDIN rail
OptionsCOM2 RS-232/485 with support for Modbus RTU protocol + 4 discrete outputs (solid state or relay), 2 discrete inputs; PLC interface; 2GB SD memory card
Power SupplyUniversal AC or external DC

Special Features and BenefitsIND131 DIN mounting and chassis assembly



  • Split housing design uses two snap in place tabs for secure assembly and easy disassembly
  • Mounting designed for 35mm DIN rail
  • Secure installation using DIN rail retaining tab
  • Front panel display and 4-button interface for ease of service
  • Front panel access to SD Memory Card slot
  • Detachable terminal connectors
  •  Environmental protection rating IP20

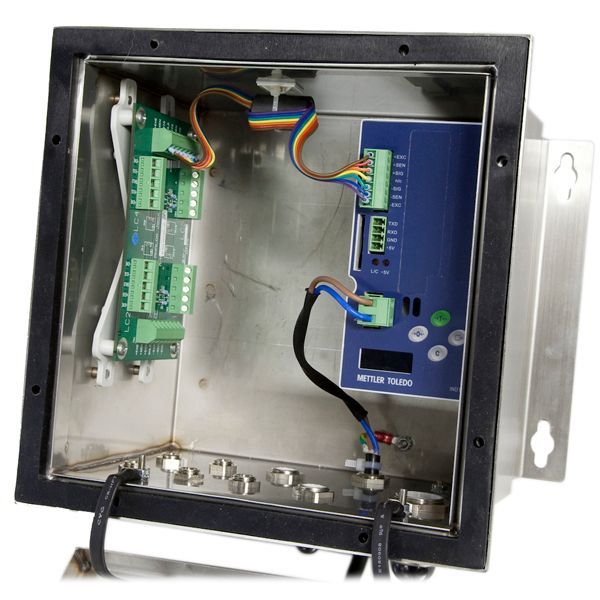

IND131 Junction-box terminal

Compact scale terminal with enhanced connectivity and integral load cell summing
The IND131 Junction Box scale terminal features an IND131 DIN unit and a load cell summing board mounted in a robust stainless steel enclosure. The enclosure’s integrated mounting brackets simplify secure wall-mounting.
Specifications – IND131 Junction-box terminal
LevelBasic
Display(Inside enclosure) OLED, 4 mm high
InterfacesAnalog output, Allen-Bradley RIO, CC-Link®, ControlNet™, DeviceNet™, EtherNet/IP™, Modbus TCP, PROFIBUS® DP
Degree of protectionIP69K
HousingsStainless steel
ApplicationsProcess weighing
A/D rate (int./ext)Internal: 366 Hz. Target comparison: 50 Hz. PLC: 20 Hz.
Dimensions251 x 261 x 123 mm (9.9 x 10.3 x 7.0 inches)
Keyboard(Inside enclosure) Zero, Tare, Clear, Print
Signal processingTraxDSP™ digital filtering
Resolution100,000 divisions
Suitable platforms / weigh modulesAnalog load cells. Includes integral summing board for four load cells
Number of attachable platforms1
Digital Input/OutputOptional, relay or solid state, 2 inputs, 4 outputs
Mounting optionsWall mount using integral bracket
OptionsCOM2 RS-232/485 with support for Modbus RTU protocol + 4 discrete outputs (solid state or relay), 2 discrete inputs; PLC interface; 2GB SD memory card
Power SupplyUniversal AC or external DC

Special Features and Benefits



  • Sharp OLED front panel display with easy 4-button operator interface on DIN unit
  • Easy access to summing board
  • Integrated bracket design to simplify mounting
  • Environmental protection rating IP69K (Junction Box)
  • SD Memory Card slot on the DIN unit

IND331 Panel-mount terminal

Flexible panel mounting for basic industrial weighing
The IND331 compact scale terminal consists of an IND131 terminal unit and a detachable panel display with scale function keys and OLED display. The terminal and the display unit can be mounted to the panel using a patented mounting design, or the terminal unit can be mounted remotely from the panel display unit using the DIN-rail mount design.
Specifications – IND331 Panel-mount terminal
LevelBasic
DisplayOLED, 12 mm high
InterfacesAnalog output, Allen-Bradley RIO, CC-Link®, ControlNet™, DeviceNet™, EtherNet/IP™, Modbus TCP, PROFIBUS® DP
Degree of protectionIP65, Type 4x and 12
HousingsStainless steel display panel and plastic DIN chassis
ApplicationsProcess weighing
A/D rate (int./ext)Internal analog – 366 Hz; Target comparison – 50 Hz; PLC – 20Hz
DimensionsFront panel: 6.6 x 2.7 x 0.5 inches (68 x 138 x 11 mm)
KeyboardZero, Tare, Clear, Print
Signal processingTraxDSP™ Digital Filtering
Resolution100,000 divisions
Suitable platforms / weigh modulesAnalog load cells
Number of attachable platforms1
Digital Input/OutputOptional, Relay or Solid State, 2 Inputs, 4 Outputs
Mounting optionsPanel mount, or panel mount + DIN rail chassis mounted remotely
OptionsCOM2 RS-232/485 with support for Modbus RTU protocol + 4 discrete outputs (relay or solid state), 2 discrete inputs; PLC interfaces; 2 GB SD memory card; PTPN terminal adapter plate
Power SupplyUniversal AC or external DC



Special Features and Benefits

  • Sharp OLED front panel display with easy 4-button operator interface
  • Choice of terminal mounting options: Panel mount with display using patented mounting features, or with DIN chassis up to 18m / 50 ft from panel display
  • 7-hole drilling pattern for easy panel mounting
  • Environmental protection rating IP 65 / Type 4x and 12 (panel display)
  • Environmental protection rating IP20 / Type 1 (terminal housing)
  • Split housing design uses two snap-in tabs for secure assembly and easy disassembly
  • 35mm DIN rail mount design for remote mounting
  • Secure installation using DIN rail retaining tab
  • SD Memory Card slot
  • Detachable terminal connectors

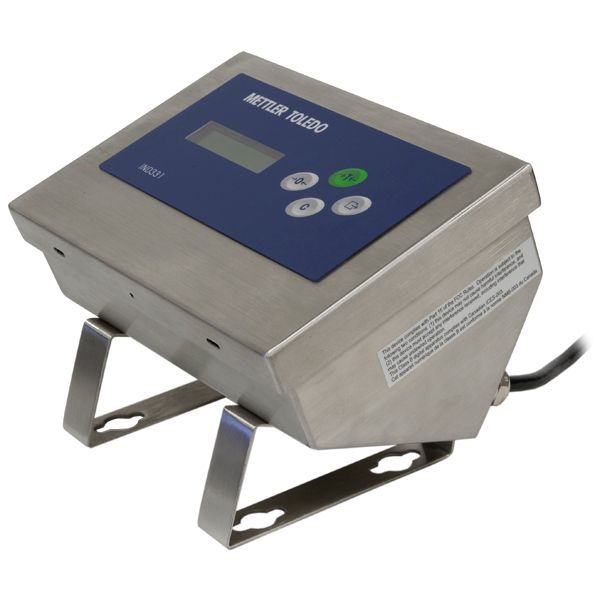

IND331 Harsh desk/wall mount terminal

Rugged design, flexible connectivity
The IND331 terminal for harsh environments is housed in a stainless steel enclosure with an IP66 rating, and provides precision weighing in difficult industrial settings. The enclosure can be placed on a desk or mounted to a wall, and features the same OLED display, operator interface and flexible connectivity as the IND331 panel mount terminal.
Specifications – IND331 Harsh desk/wall mount terminal
LevelBasic
DisplayOLED, 12 mm high
InterfacesAnalog output, Allen-Bradley RIO, CC-Link®, ControlNet™, DeviceNet™, EtherNet/IP™, Modbus TCP, PROFIBUS® DP
Degree of protectionIP66
HousingsStainless steel enclosure
ApplicationsProcess weighing
A/D rate (int./ext)Internal: 366 Hz. Target comparison: 50 Hz. PLC: 20 Hz
Dimensions220 x 131 x 177 mm (8.7 x 5.2 x 7.0 inches)
KeyboardZero, Tare, Clear, Print
Signal processingTraxDSP™ digital filtering
Resolution100,000 divisions
Suitable platforms / weigh modulesAnalog load cells
Number of attachable platforms1
Digital Input/OutputOptional relay or solid state, 2 inputs, 4 outputs
Mounting optionsDesk, wall or column
OptionsCOM2 RS-232/485 with support for Modbus RTU protocol + 4 discrete outputs (solid state or relay), 2 discrete inputs; PLC interface; wall mounting bracket; swivel bracket; 2 GB SD memory card
Power SupplyUniversal AC or external DC



Special Features and Benefits

  • Sharp OLED front panel display with easy 4-button operator interfaceIND331 harsh with optional brackets
  • Choice of terminal mounting methods: Desktop or wall
  • Environmental protection rating IP66
  • Modular design allows easy access to main and option boards
  • SD Memory Card slot

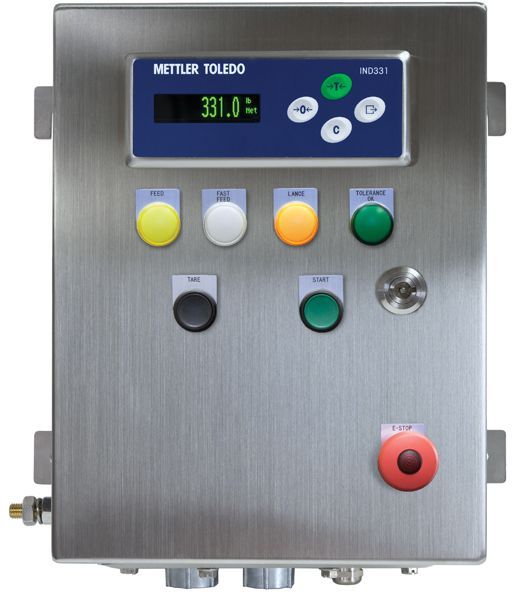

IND131xx-IND331x packaged terminals for hazardous areas

Enhanced terminals in robust enclosures

Packaged IND131xx and IND331xx in Enclosures Approved for Division 2, Zone 2 and Zone 22. Each version can be configured with any of the terminals’ multiple interface and connectivity options. Packages include an agency-approved 24 VDC power supply.

Multiple Terminal configurations available

When a single terminal is not enough, multi-terminal designs are available, with agency-approved power supply, optional ISB (Intrinsically Safe Barrier) and additional features as required for the application.



Specifications – IND131xx-IND331x packaged terminals for hazardous areas
LevelBasic
Operational AreaProcess weighing; hazardous areas
Degree of protectionIP66
Hazardous area approvalZone 2/22, Division 2


Enclosure specifications

The stainless steel enclosure housing the IND131xx DIN and IND331xx panel packaged solutions is FM-approved for use in safe areas, and in Division 2, Zone 2 hazardous areas. The enclosure is ATEX/IECEx certified for Zone 22 (dust) hazardous areas. Cable entry points can be either conduit hubs for use in the U.S., or ATEX-approved glands for European applications.

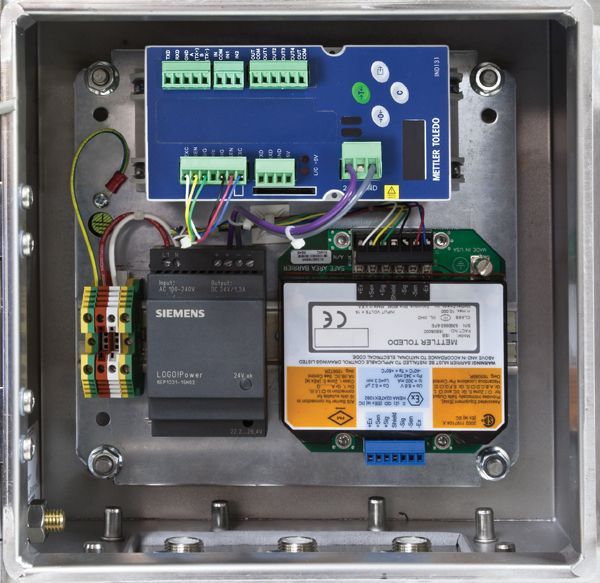

Load cells in hazardous areas

In applications with load cells installed in Division 1/Zone 1 or Zone 1/21 areas, an intrinsically safe analog load cell barrier (ISB) is required. IND131xx and IND331xx terminals packaged with a METTLER TOLEDO ISB05 intrinsically safe barrier provide an integrated solution for such applications – click on the image at right to see a typical installation, including an IND131xx, ISB and power supply. Refer to the control drawing (available on the documentation tab of this page) for load cell compatibility.

The packaged model configurations are available with any of the PLC interfaces (EtherNet/IP, PROFIBUS DP, Modbus TCP, Allen-Bradley RIO, ControlNet, Device-Net), and Solid State DIO.





Weighing Terminal IND331

Weigh-Comply-Control-Connect.
  • Operator-friendly display

This harsh/desk/wall-mount unit has an OLED graphic display with 12mm tall characters for easy wide-angle viewing.

  • Backup and restore utility

The SD memory card utility allows easy backup and restore of setup information along with the convenience of portability.

  • Calibration from PLC

Choose from traditional, Step, CalFREE™ calibration methods or the new calibration from PLC feature to eliminate operator error.

Specifications – Weighing Terminal IND331
ScaleAnalog; max. 1 scale
CommunicationRS232
Communication (Optional)Allen-Bradley RIO; RS485; PROFIBUS DP; Discrete I/O; DeviceNet
Mounting FlexibilityColumn; Desk; Panel; Wall
Voltage24 VDC Version; AC Version
DisplayGraphic OLED
Dimensions (LxWxH)8.7 in x 7 in x 5.2 in (220 mm x 177 mm x 131 mm)
Display Mounting FlexibilityUnit integrated
Key PadLarge buttons with tactile feedback
CalFREE CalibrationYes
HousingStainless Steel
Interfaces4 button interface; RS232
Displayed Resolution100’000 d (max)
Protection RatingIP65
Hazardous ApprovalNo
Sensitivity (Minimum/Approved)0.1 µV / 0.6 mV
A/D Update Rate366 Hz
DIO/COM2 Serial PortNone
Custom programmableNo
Hygenic DesignNo
Material Number(s)64088572

IND131xx Junction-box terminal for hazardous areas

Compact scale terminal with enhanced connectivity and integral load cell summing
The IND131xx Junction Box scale terminal features an IND131xx DIN unit and a load cell summing board mounted in a robust stainless steel enclosure. The J-box is available with either conduit hubs or ATEX-certified glands.The enclosure’s integrated mounting brackets simplify secure wall-mounting.
Specifications – IND131xx Junction-box terminal for hazardous areas
LevelBasic
Display(Inside enclosure) OLED, 4 mm high
InterfacesAnalog output, Allen-Bradley RIO, DeviceNet™, ControlNet™, EtherNet/IP™, Modbus TCP, PROFIBUS® DP
Degree of protectionIP69K
HousingsStainless steel
Hazardous area approvalZone 2/22, Division 2
ApplicationsProcess weighing
A/D rate (int./ext)Internal: 366 Hz. Target comparison: 50 Hz. PLC: 20 Hz.
Dimensions251 x 261 x 123 mm (9.9 x 10.3 x 7.0 inches)
Keyboard(Inside enclosure) Zero, Tare, Clear, Print
Signal processingTraxDSP™ digital filtering
Resolution100,000 divisions
Suitable platforms / weigh modulesAnalog load cells. Includes integral summing board for four load cells
Number of attachable platforms1
Digital Input/OutputOptional, solid state, 2 inputs, 4 outputs
Mounting optionsWall mount using integral bracket
OptionsCOM2 RS-232/485 with support for Modbus RTU protocol + 4 discrete outputs (solid state), 2 discrete inputs; PLC interface; 2GB SD memory card
Power SupplyExternal DC

Special Features and Benefits



  • Easy access to summing board
  • Integrated bracket design to simplify mounting
  • Environmental protection rating IP69K (Junction Box)
  • Calibration and configuration settings can be transported, and firmware updated, using optional SD memory card
  • SD Memory Card slot on the DIN unit



Weighing Terminal IND131

Weigh-Comply-Control-Connect.
  • Operator interface

This DIN-rail mount unit has a sharp looking OLED display and button interface for ease of set up and service.

  • Backup and restore utility

The SD memory card utility allows easy backup and restore of setup information along with the convenience of portability.

  • Calibration from PLC

Choose from traditional, Step, CalFREE™ calibration methods or the new calibration from PLC feature to eliminate operator error.

Specifications – Weighing Terminal IND131
ScaleAnalog; max. 1 scale
CommunicationRS232
Communication (Optional)Allen-Bradley RIO; RS485; PROFIBUS DP; Discrete I/O; DeviceNet
Mounting FlexibilityDIN-rail; Junction Box
Voltage24 VDC Version; AC Version
DisplayGraphic OLED
Dimensions (LxWxH)5.4 in x 2.7 in x 4.4 in (138 mm x 68 mm x 111 mm)
Display Mounting FlexibilityUnit integrated
Key PadLarge buttons with tactile feedback
CalFREE CalibrationYes
HousingPlastic
Interfaces4 button interface
Displayed Resolution100’000 d (max)
Protection RatingIP20
Hazardous ApprovalNo
Sensitivity (Minimum/Approved)0.1 µV / 0.6 µV
A/D Update Rate366 Hz
DIO/COM2 Serial PortNone
Custom programmableNo
Hygenic DesignNo
Material Number(s)64087994

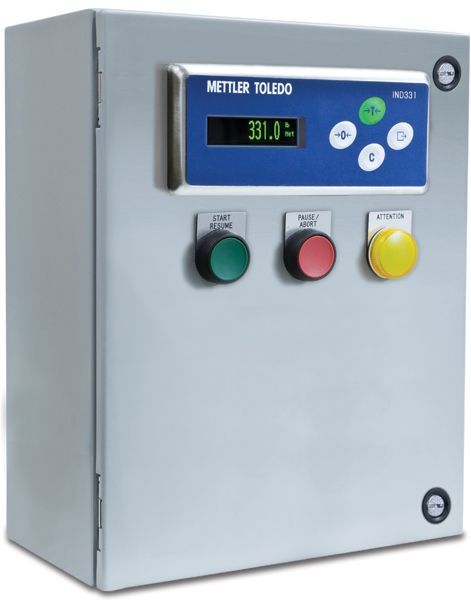

Packaged Terminal Solutions - IND131 and IND331

Process terminals in pre-configured packages
The IND131 and IND331 terminals are available in a variety of packaged solutions that can include optional communications, Digital I/O and PLC interfaces as well as an AC or DC power supply. Specify a fiberglass, painted mild steel or stainless steel enclosure, to suit your process environment.

Specify a multiple-terminal installation to reduce mounting space and cable runs. Each terminal can be configured for the application required.
With the dry contact relay option installed, the IND131 and IND331 terminals can provide high voltage control signals directly to devices such as ball valves and vibratory feeders. Select latched or coincidence targets in combination with user-defined limit values for up to three comparators, to create a time-saving and cost-effective basic process controller.



Custom configuration

Specify the packaged IND131 and IND131 terminals for specific applications with convenient operators for I/O, such as pushbuttons and annunciators, to make operator interactions easier, more consistent and safer.
Each enclosure type includes integrated mounting brackets and, for DC-powered terminals, an optional internal 24 VDC power supply.







Environmental ratings of enclosures

All enclosures are UL and cUL certified, and rated IP66.






FiberglassNEMA 4/4x/12/13
Painted mild steel4/12
Type 304 brushed stainless steel 3R/4/4x/12/13



37604494 / 33389620

info@el-batawi.com

6 El Sad El Aly Street – Dokki

©El-Batawi co. All Rights Reserved
