IND246 Weighing Terminal

Basic weighing, over/under checkweighing, vehicle weighing, and piece counting



Integrated Application Software

In addition to simple weighing IND246  comes pre-configured with five transaction weighing applications ready to use; Animal weighing, counting, checkweighing, peak weight measurement, and vehicle weighing.  Pre-designed print templates provide fast and easy start-up no matter which application is selected.



Effective Connectivity

In addition to serial device connectivity options for Ethernet TCP/IP, USB, and internal Discrete I/O are offered.  This allows for connection to a variety of peripheral devices such as printers, bar code scanners, displays, and PC connection for data transfer.



Effective User Interface

The intuitive software and flexible softkeys allow operators to complete a transaction quickly and efficiently.  Multi-lingual menus and messages allow for adaption for use in a variety of locations.  The bright, backlit, graphic display is easily readable under a variety of ambient lighting conditions.



Rechargeable Internal Battery Version

The IP66 protected internal long life battery design with fast replacement allows for high uptime when a battery powered terminal is required.

IND246 and IND246 POWERCELL Weighing Terminals

Application Versatility for General-Purpose Transaction Weighing

The IND246 terminal provides best-in-class flexibility, performance and operator interface for simple weighing or for specific basic level applications, including checkweighing, inbound/outbound vehicle weighing, peak weight measurement, animal weighing and counting.

The IND246 analog terminal is available in an NiMH battery-powered version, making it easy to position where it is needed.

The POWERCELL® version offers digital performance for basic vehicle weighing, using up to 12 PDX® or GDD load cells.

The terminals feature a large backlit graphic LCD display, an operator-friendly keypad layout with function, alphanumeric and navigation keys, support for SD memory card, and application-specific print templates. These characteristics make the IND246 series the most versatile general purpose transaction weighing terminals available.

  • 100 – 240 VAC power, or NiMH battery model (analog version only)
  • Alphanumeric keypad for quick entry of tare and ID information
  • Large, back-lit graphic LCD display, readable under varying light conditions
  • Automatic shut-off and backlight timout features help extend battery life
  • Isolated COM1 and optional COM2 serial ports
  • Flexible connectivity via optional COM2, Ethernet and USB ports
  • Control of external devices using Discrete I/O
  • Support for PC-based File Transfer Tool to transfer ID or target tables to and from the terminal
Specifications – IND246 and IND246 POWERCELL Weighing Terminals
LevelTransaction
DisplayGraphic LCD, transflective/backlit, 240 x 96 pixels
InterfacesSerial, USB, Ethernet, Digital I/O
Degree of protectionIP66
HousingsStainless steel
ApplicationsAnimal Weighing, Checkweighing, Counting, Peak Weight Measurement, Vehicle Weighing
Suitable platforms / weigh modulesAnalog load cells, POWERCELL load cells
Digital Input/OutputOptional, 2 inputs, 4 outputs
Mounting optionsFixed wall brackets (standard on Analog version, optional on POWERCELL version); tilt/swivel bracket (optional)
AccessoriesSD memory card (Analog version), MicroSD card (POWERCELL version), NiMH Battery Pack, NiMH Battery Pack Charger
Power Supply100 – 240 VAC or NiMH battery

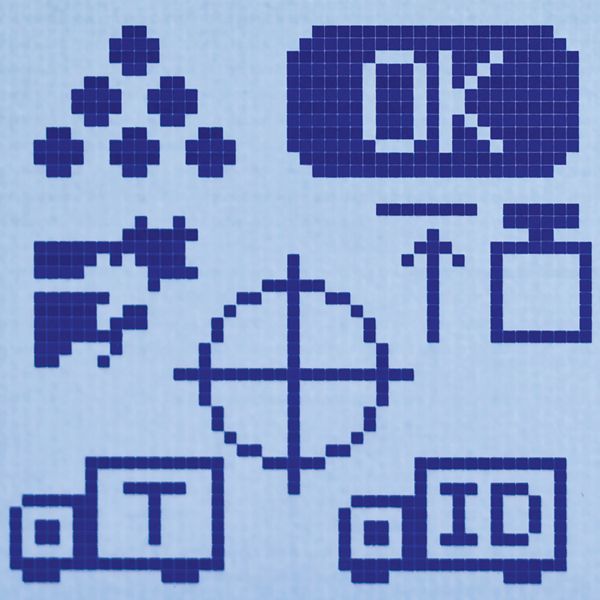

Application Versatility Meets Operator ProductivityIND246 icons

The IND246  comes pre-configured with five transaction weighing applications ready to use:

  • Animal Weighing: Generates average weight for one animal, or average weight-per-animal for multiples
  • Counting: Prompts operator through piece counting sequence to help reduce operator errors. Includes continuous automatic reference optimization and accumulation by part ID
  • Checkweighing: Over/Under operation with clear on-screen status display, and two selectable sizes of SmartTrac graphical representation
  • Peak Weight Measurement: Displays the peak weight from the current weighing cycle, or maximum, minimum and average peak weight from a multi-transaction weighing cycle
  • Vehicle Weighing: Temporary or Permanent ID weighing for one- and two-pass operation
